Aluma CCD694 / FW8S / SC-2E Package

The Aluma CCD series supports a wide range of accessories, including the 8-position FW8S-Aluma filter wheel with micron-level filter positioning, StarChaser SC-2 off-axis guide camera, and AO-8A Adaptive Optics accessory.

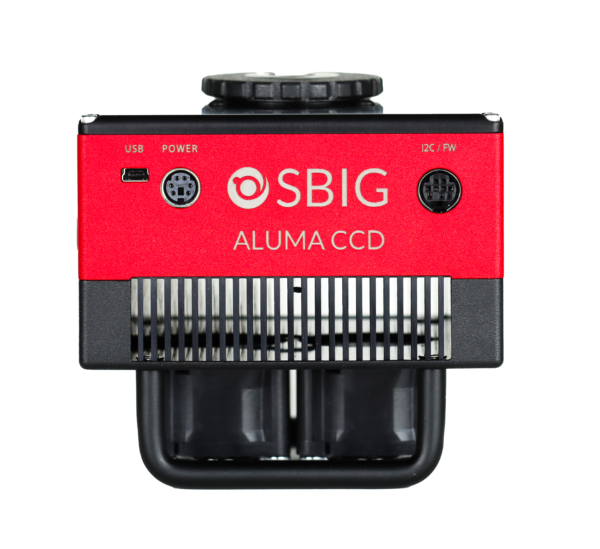

The Aluma CCD694 has a high-sensitivity, low-noise 6 megapixel CCD sensor with 4.54 micron pixels. It is ideal for taking high spatial resolution, long duration exposures with minimal amp glow, dark current, and noise.  It also includes the ability to perform high ratio analog binning, which is important for applications such as spectroscopy.

Aluma CCD is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the best value in a high-performance mid-sized 16-bit CCD detector. We have carefully refined the camera electronics for improved performance, minimum amp glow, and low noise.  Using SONY's best-in-class CCDs, you'll get the precision and ultra-clean images of a CCD with the sensitivity of CMOS technology.

FW8S-Aluma filter wheel

FW8S-Aluma is the 8-position filter wheel for Aluma CCD Series cameras.  It is compatible with Canon EOS and Nikon lens adapters.

Features

The carousel holds eight 36mm filters and inserts are available for 1.25" filters.  The 36 mm filters provide unvignetted imaging for the largest Aluma sensors.

Aluma wheels include a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat-fielding.

The left-hand image below shows a dust spot on the filters.  A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, at right.  No evidence of the dust spot is visible.  This high precision results in the highest quality images and excellent photometric accuracy.

Compatible filters are available at additional cost.

SBIG StarChaser Off-Axis Guider Cameras

The SBIG StarChaser is the world's first all-in-one off-axis guider with built-in camera and integrated AO support.  Comes complete with MaxIm LT software.

New!  All StarChasers now include Enhanced sensors with improved Infrared sensitivity.

Several versions are available to fit our various SBIG camera models.
