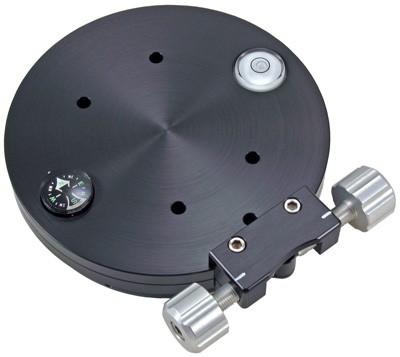

Astro-Physics Precision-Adjust Rotating Pier Base / Hi-Res Azimuth Adjuster Upgrade Kit

The Mach2GTO Precision-Adjust Rotating Pier Base / Hi-Res Azimuth Adjuster is standard on new mounts starting in 2011. In addition, it is being offered as a significant upgrade to previously shipped mounts (serial # 10463 or lower). This new assembly easily replaces the existing pier base by simple attachment with four ¼-20 socket head cap screws.

There is no need for lockdown knobs as with earlier mounts. Instead, the CNC-machined two-part base fluidly rotates through a 13 degree range (+/- 6.5 degrees) while maintaining rigidity. Additionally, redesigning and shifting the azimuth adjuster knobs to the rear of the R.A. axis, provides easier access and nearly doubles the precision of their adjustments. An etched line on the adjuster housing corresponds with the ridges of the knobs to provide a measured adjustment of 0.7021 degrees per rotation or 0.05 degrees per ridge.

Shown to the right is a detail of the new azimuth adjuster component. Its location at the back of the mount provides smooth and accurate adjustments that are easily accessible.

  Shown to the left are the new, larger compass and level. The original lock-down knobs are no longer necessary and have been removed, allowing these items to be enlarged and repositioned for greater visibility and ease of use.

The kit also includes two caps that have been beautifully engraved with an AP logo, These caps will attractively fill the holes left when removing the original azimuth adjuster knobs (no longer needed) when installing the upgrade kit.

The new Machined KnobKit (M1485KBKIT) with its three attractive CNC machined knobs is available separately. It will complete your Mach2GTO upgrade.

The upgrade kit includes: the Precision-Adjust Rotating Pier Base / Hi-Res Azimuth Adjuster and two (2) AP Logo Caps.
