Stock photos provided by the manufacturers may not represent the actual item. Please verify this picture accurately reflects the product described by the title and description before you place your order.

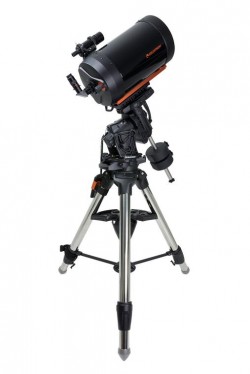

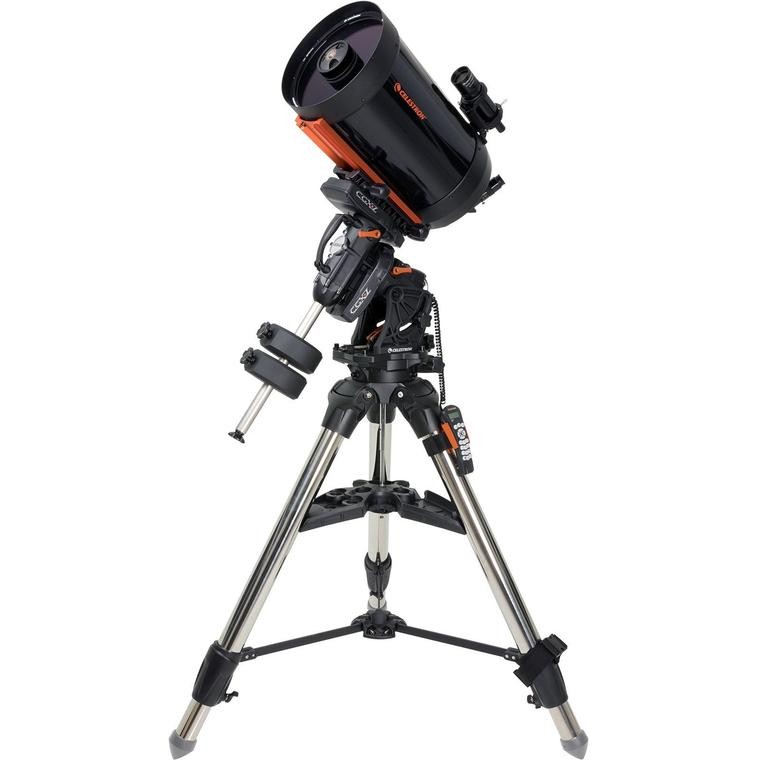

Celestron CGX‑L Equatorial 11
- Manufacturer: Celestron
- MPN: 12071
- SKU: CEL-12071
- Last price was: $6,999.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition in their fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.
Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, they've made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.
SPECIFICATIONS
| Aperture (mm) | 279.4 mm (11 in) |
| Autoguide port | Yes |
| Dovetail Compatibility | CGE Mount |
| EQ Head Weight w/o Counterw... | 47 lb |
| Finderscope | 9x50 |
| Focal Length | 2800 mm (110 in) |
| Focal Length of Eyepiece 1 ... | 40 mm (1.57 in) |
| Focal Ratio | 10 |
| Highest Useful Magnification | 660x |
| Included Items | N.A. |
| Instrument load capacity | 75 lbs |
| Latitude adjustment range | 3"-65" |
| Light Gathering Power (Comp... | 1593x |
| Limiting Stellar Magnitude | 14.7 |
| Lowest Useful Magnification | 40x |
| Magnification of Eyepiece 1 | 70x |
| Max Slew Speed | 4"/second (3"/second is default) |
| Mount | N.A. |
| Mount_1 | German Equatorial |
| Number of Auxiliary ports (... | 4 |
| Optical Coatings | StarBright XLT |
| Optical Design | Schmidt-Cassegrain |
| Optical Tube | N.A. |
| Optical Tube Length | 24 in (610 mm) |
| Optical Tube Weight | 27.5 lbs (12 kg) |
| Optical Tube_1 | Aluminum |
| Resolution (Dawes) | 0.42 arc seconds |
| Resolution (Rayleigh) | 0.5 arc seconds |
| Secondary Mirror Obstructio... | 12% |
| Software | PWI Telescope Control Software |
| Star Diagonal | 1.25 |
| Total EQ Head Weight | 52.6 lb |
| Tracking Rates | Sidereal, Solar and Lunar |
| Tripod height adjustment range | 35.75" to 52.75" |
| Tripod leg diameter | 2.75" |
| Tripod Weight | 46.2 lb |
| USB Port | Yes |
| _1... | CGX-L Equatorial Head |
| _2... | CGX-L Tripod |
| _3... | Accessory Tray |
| _4... | 2 x 22 lbs counterweight |
| _5... | NexStar+ Hand Control |
| _6... | DC Power Cable (plugs into cigarette lighter socket) |
| _7... | 8 mm Allen wrench (contained in rear carry handle) |
