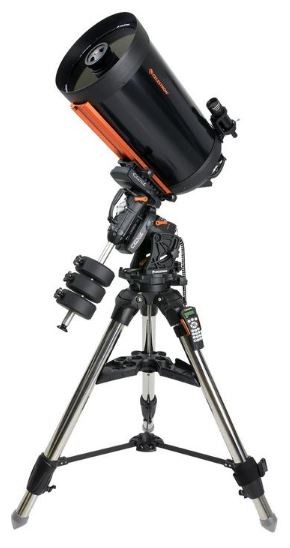

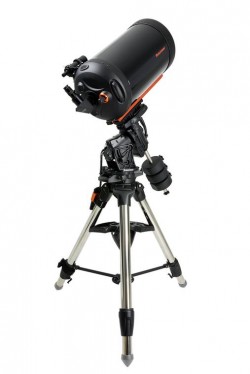

Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition in their fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.
Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, they've made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.
SPECIFICATIONS
Aperture (mm) | 355.5 mm (14 in) |
Autoguide port | Yes |
EQ Head Weight w/o Counterw... | 47 lb |
Finderscope | 9x50 |
Focal Length | 3910 mm (154 in) |
Focal Length of Eyepiece 1 ... | 40 mm (1.57 in) |
Focal Ratio | 11 |
Included Items | N.A. |
Instrument load capacity | 75 lb |
Latitude adjustment range | 3"-65" |
Magnification of Eyepiece 1 | 98 x |
Max Slew Speed | 4"/second (3"/second is default) |
Mount | German Equatorial |
Mount Info: | N.A. |
Number of Auxiliary ports (... | 4 |
Optical Design | Schmidt-Cassegrain |
Optical Tube Info: | N.A. |
Software | PWI Telescope Control Software |
Star Diagonal | 2" with 1.25" adapter |
Total EQ Head Weight | 52.6 lb |
Tracking Rates | Sidereal, Solar and Lunar |
Tripod height adjustment range | 35.75" to 52.75" |
Tripod leg diameter | 2.75" |
Tripod Weight | 46.2 lb |
USB Port | Yes |
_1... | CGX-L Tripod |
_2... | Accessory Tray |
_3... | 3 x 22 lb Counterweight |
_4... | NexStar+ Hand Control |
_5... | DC Power Cable (plugs into cigarette lighter socket) |
_6... | 8 mm Allen Wrench (contained in rear carry handle) |
