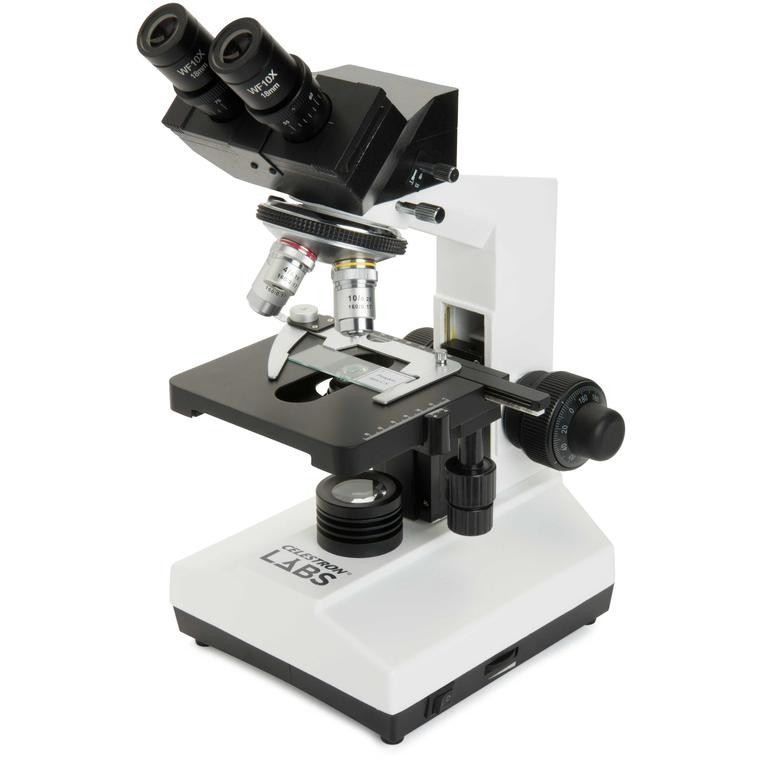

The Celestron Labs CB2000C Binocular Compound Microscope offers all the advanced features you’re looking for. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), you’ll achieve magnification ranging from 40x to 2000x. Improve the quality of your magnified images with the included 3 colored filters. A trinocular eyepiece tube is included, allowing for a camera to be adapted or for secondary eyepiece viewing. The 10 included prepared slides guarantee exciting discoveries right out of the box.
This microscope provides perfect illumination thanks its NA 1.25 Abbe condenser and iris diaphragm, which allow to you to control and concentrate light on your specimens. You can easily control brightness, contrast, depth of field, and evenness of illumination by adjusting the distance between the Abbe condenser and objective or by adjusting the condenser’s iris diaphragm, which controls the diameter of the light beam. The fully mechanical stage has knobs to control both axes for easy centering of your slides. An all-metal construction means you can rely on the CB2000C for years to come. The Trinocular adapter allows for the attachment of a camera for taking images of your specimens.
Eyepieces | (1) WF 10X (with pointer)/ (1) WF 20X |
Objectives | (4) achromatic 4x, 10x, 40x- on quad click rotating objective turret |
Magnification | 40x to 2000x |
Focuser | Coaxial, coarse and fine focus knobs |
Head | Binocular with 45° incline |
Illuminator | Lower, halogen, adjustable |
Condenser | Abbe NA 1.25 |
Diaphragm | Iris |
Stage | Mechanical stage, 140 mm x 140 mm (5.5" x 5.5") |
Power | AC plug (110-240V) |
Accessories | (1) Trinocular eyepiece tube adapter, (10) prepared slides, (3) color filters (blue, yellow, green), (1) small bottle of immersion oil |
Dimensions | 247.6 mm x 185 mm x 362 mm (9.75" x 7.3" x 14.25") |
Weight | 12 lbs 5 oz (5.53 kgs) |
