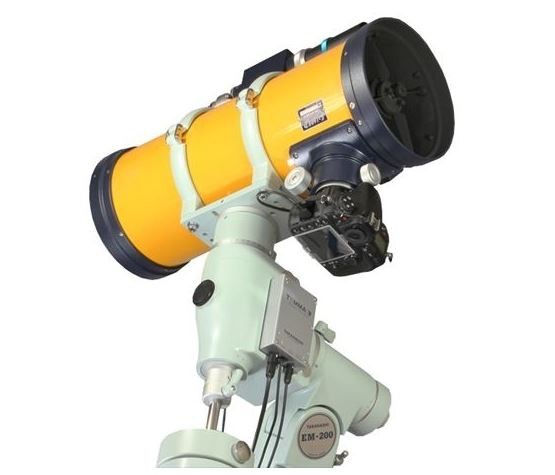

EPSILON E-160ED REFLECTOR



The Epsilon series of astrographs are specifically designed for exceptional astrophotography.  Takahashi’s proprietary optical design features a hyperbolic, concave primary mirror with a 2 element corrector lens to eliminate spherical aberration and coma.  Compared to the conventional Schmidt camera design, the chromatic aberration is reduced by half, even out to large viewing angles.



The E-160ED reflecting telescope has an aperture of 160 mm and a focal length of 530 mm and provides a well corrected flat field for full frame imaging sensors.



Thorough aberration correction is realized by by optimizing the interaction of the hyperbolic mirror and the corrector. By using ED glass in the corrector, a spot image within 3 μm has been achieved at the periphery of a full frame imaging sensor. The E-160ED combines the ease of handling of the E-130D  with the high performance of the E-180ED.



The eccentric oblique mirror and the spider vane design are used to suppress the scatter of light similar to the current epsilon models. The method of holding the primary mirror uses the same system as E-180ED. The optical axis adjustment screw of the primary mirror has a structure in which push screws are arranged on both sides of the pull screw. The central cover can be removed to allow for rapid temperature acclimation.



Specifications
Optical Design   Hyperbolic Newtonian
Effective aperture   160 mm
Oblique mirror minor diameter   63 mm
Correction lens   2 elements in 2 groups (1 of which is ED glass)
Focal length   530 mm
Focal ratio   1: 3.3
Image circle   φ44 mm (angle of view: 4.8°)
Lens barrel diameter   204 mm
Tube length   580 mm
Mass   6.9 kg
Viewfinder   6x30 or 7x50, Sold separately





NOTE: The corrector for the E-160ED cannot be used with the older E-160 OTA. Price includes OTA only. Mount, tripod, finder and camera sold separately.
