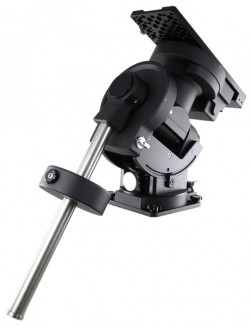

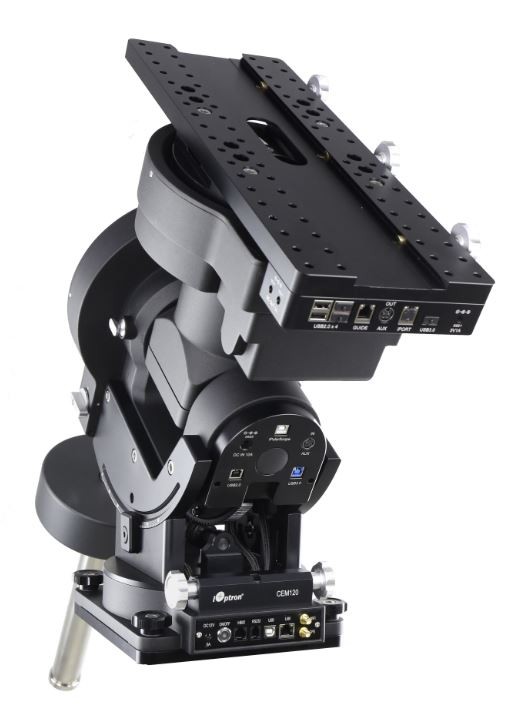

iOptron CEM120 Center Balanced Equatorial Mount

Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, iOptron has created the CEM120.  It offers the benefits of their revolutionary "center balance" design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 115lbs (52 kg).  The "center balance" design's natural stability is due to its focusing the mount along with payloads weight directly over the center of the pier or tripod.  The CEM120's performance is demonstrated by its low periodic tracking error of +/- 3.5 arc seconds and down to

The CEM120 is available in two versions, the CEM120 and the CEM120EC (The EC version has high resolution encoders for real time nearly error free tracking).

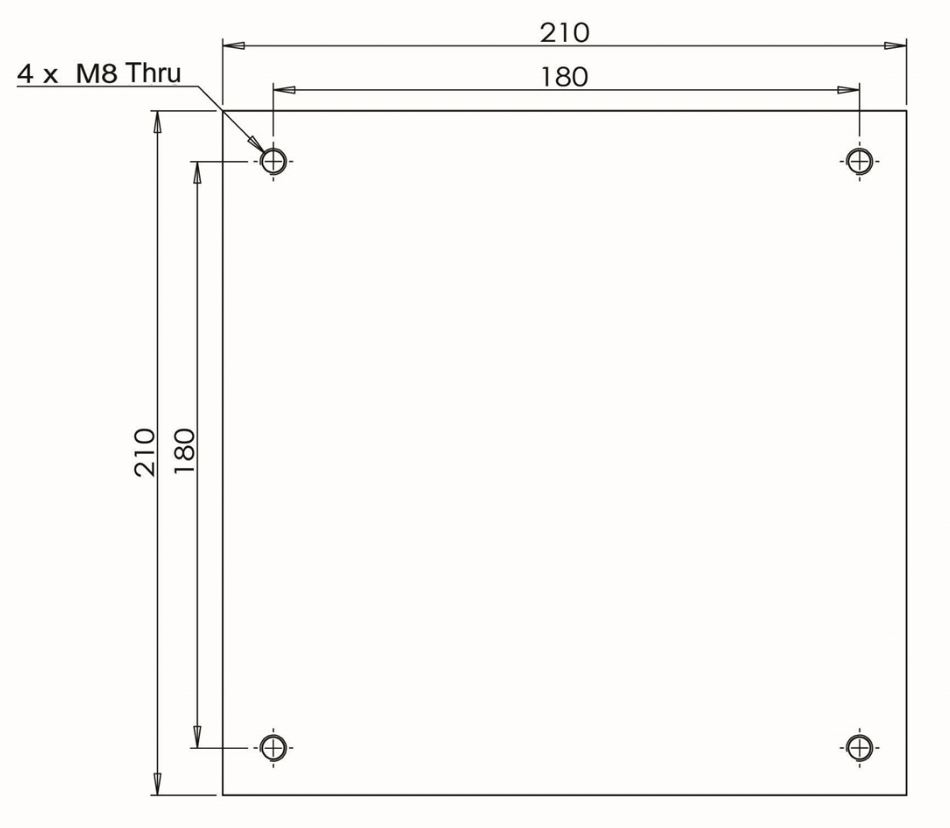

CEM120 PIER ADAPTER TEMPLATE

Features

• A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
• Observatory astrophotography mount ideal for both visual observation  and Astrophotography
• Payload of 115 lbs (52 kg) with the mount weight of 57 lbs (26 kg)
• Easy to use and reliable gear clutches
• Adjustable counterweight shaft for 0º latitude operation
• Precision altitude and azimuth adjustment.
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
• Polar alignment routine for those who can't see the Pole Star
• Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built in heater
• Permanent periodic error correction (PPEC) or real time PEC (RPEC) for the CEM120EC
• Built-in 32-channel Global Positioning System (GPS)
• Built-in Wi-Fi and LAN for remote operation
• Integrated ST-4 auto guiding port
• Advanced cable management system with more choices
• Spring loaded, individual adjustable Losmandy style saddle
• 10kg x 2 Counterweights

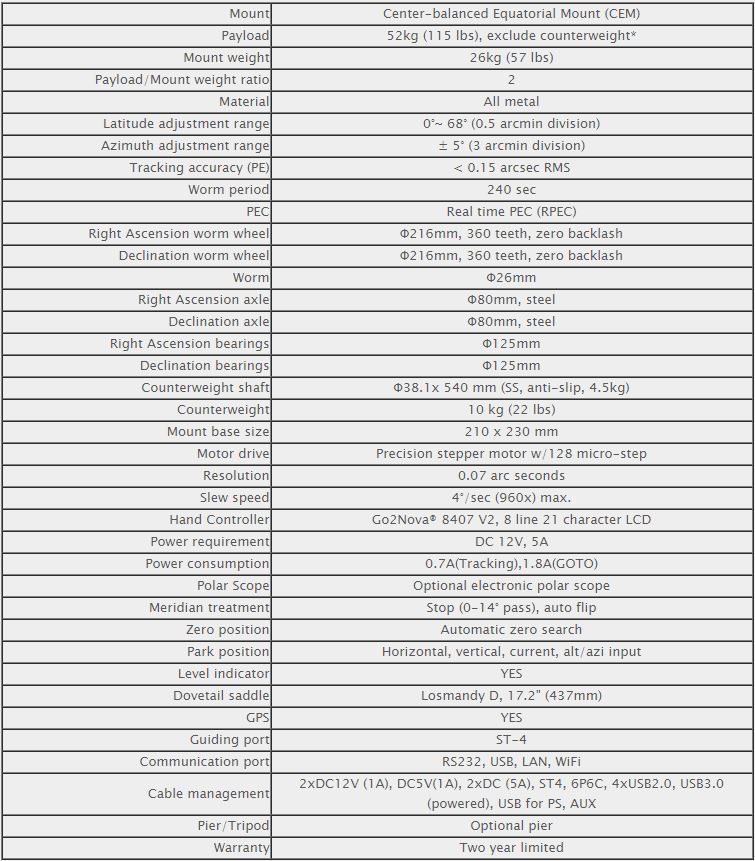

SPECIFICATIONS
