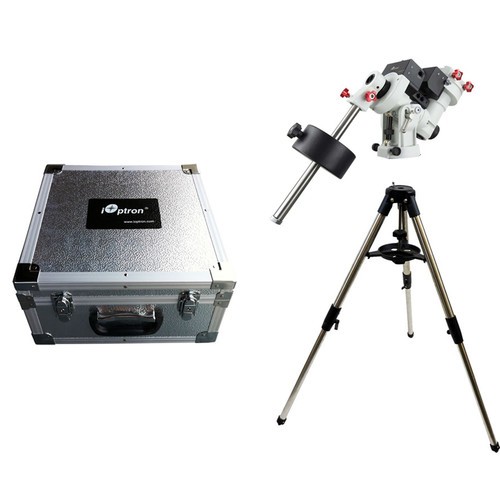

iOptron CEM25EC GoTo EQ Mount (1.75





iOptron improved their ZEQ25 mount to create the CEM25EC GoTo EQ Mount. It features a motorized equatorial mount, Go2Nova 8408 computer hand controller, a 2" stainless steel adjustable tripod, the AccuAlign illuminated polar scope, and hard carrying case for the mount. A unique center-balanced "Z" design puts the payload weight at the center of gravity for enhanced natural stability and greater weight-to-payload capacity ratio. Its built-in 32-channel GPS receiver transmits accurate location and day/date/time to the hand controller, so when you change your position, the telescope can be set up quickly with accurate information. For precise tracking, as required during long-exposure astrophotography or observation sessions, the CEM25EC has micro stepper motors with digital encoders to precisely track the mount's position plus the capability for you to program out the Periodic Error Correction (PEC) common to all worm gears. Even before the PEC has been compensated for, the mount has an impressive periodic error of less than 0.3 arc seconds. With a maximum payload capacity of up to 27 lb, this mount is ideal for most medium to large refractor, reflector, or catadioptric OTAs with Vixen-style dovetail plates and still be able to handle imaging rigs.



The dual-axis stepper motors are highly energy-efficient and use much less power than the servo motors they replace on this upgraded mount. The motors are controlled by the Go2Nova 8408 hand controller. This system has an internal database of 59,000+ celestial objects, with 60 user-defined objects to program yourself, and its firmware is updateable through the built-in serial port. With nine slew speeds and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy no matter if you're viewing the fast-moving Moon or much slower deep space subjects.

A heavy-duty 2" adjustable-height stainless steel tripod, larger and heavier than the 1.5" standard tripod, provides a steadier and more robust observational platform. It features a metal accessory tray that locks the legs in-place for added stability and spiked feet to put it on a sure footing in rough or loose ground. To safely store and carry the iEQ45, a hard aluminum carrying case is also provided. It features a sturdy piano hinge, with dual locks and lock-holes for security. On the inside, custom cut foam padding perfectly protects the mount.

"Z Balanced" Equatorial Mount
  • Center-balanced "Z" design puts the payload weight at the center of gravity for greater natural stability
  • 1.8° stepper motor, 128x microdivision
  • Digital optical encoders for precise tracking
  • Polar alignment adjustable even during tracking
  • Adjustable counterweight bar prevents obstruction with the tripod
  • Built-in 32-channel GPS unit for accurate day, date, time and location information
  • AccuAligning polar scope with dark-field illumination for polar alignment
  • Resolution:0.14 arc seconds
  • 88mm, 144 teeth aluminum R.A. and Dec worm wheels with brass worm gears
  • Gear tension adjustment eliminates play in gear
  • R.A. and Dec gear switches for balancing OTA
  • Spring loaded Vixen-style dovetail saddle
  • 10.4 lb counterweight included
  • Polar scope is not blocked by the DEC shaft
GO2NOVA 8408 Hand Controller
  • 59,000+ object database
  • 0.3 arc second periodic error
  • User-friendly menu driven interface
  • 9-speed slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (1440x)
  • Database includes stars, constellations and comets
  • 60 user-defined objects to easily find your favorites
  • 4 line, 21 character, red-light back lit LCD screen
  • One-star, multi-star, polar and SolarSys alignments
  • RealTime Periodic Error Correction (PEC) eliminates tracking errors for long-exposure astrophotography
  • Programmable anti-backlash adjustment for smoother tracking
  • Serial port for firmware upgrade and computer control
  • ASCOM-protocol computer control with optional planetarium software
  • Integrated ST-4 autoguiding port
AccuAligning Polar Scope
  • For accurate and fast polar alignment
  • Dark field illuminated dial
  • LED illumination
Tripod
  • The new LiteRoc tripod features a 1.75” upper leg section with a 1.5” diameter lower section (same as the old 2” tripod), resulting in a lighter tripod with stability similar to the earlier 2”.  It also has improved leg cuffs and sockets for more rigidity and redesigned leg lock levers.

Carrying Case
  • Fits the CEM25EC mount
  • Aluminum exterior
  • Reinforced edges for durability and additional protection against drops
  • Hinged carrying handle
  • Dual locking latches
  • Die-cut foam insert specifically for mount
