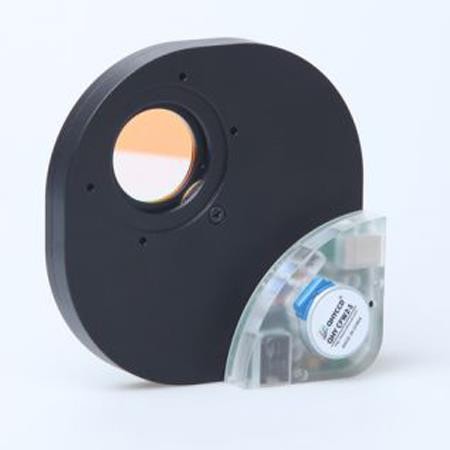

QHY CCD Large Color Filter Wheel
- Manufacturer: QHY
- UPC: 191149000829
- MPN: QHYCFW2-L
- SKU: QHYCFW2-L
- Last price was: $559.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
Large size. Support seven unmounted 50 x 50mm rectangle filter. QHYCFW2-L is the secondary generation color filter wheel of QHYCCD. QHYCCD improved the mechanical design and electric design. The QHYCFW2-L has the following advantages:
• Gear driven disk. Stable and solid
• Specially designed filter disk allow different glass thickness for unmounted filters. From 0.7mm to 5mm
• Motor moved to a corner to increase the work area
• Increased the precision for filter location
• Support USB port and powered by USB when connected with computer
• Support the 4PIN QHY CFW socket on QHY11, QHY21/22/23 and InterCam series camera
• Support the 2pin socket with QHY9 (Need external power supply)
• Open Source Firmware, Arduino compatible
Mechanical Information for QHYCFW2-L
It has both M84/0.75, 5mm thickness thread on telescope side and camera side. One the telescope side it has six M3 screw holes. One the camera side it has six 3mm through holes.
