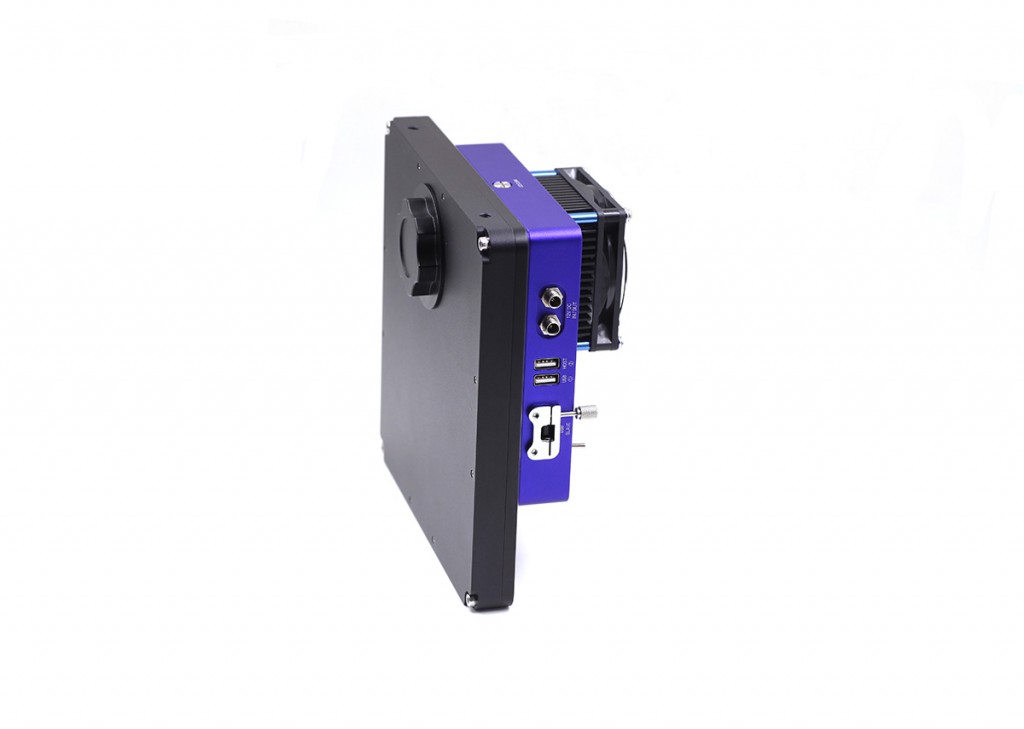

QHY CCD QHY16200A-CFW7 w/ OAG, 16 Megapixel, APS-H Format, CCD Camera with Seven Filter Wheel, and Off Axis Guider
- Manufacturer: QHY
- UPC: 191149001307
- MPN: 16200A-CFW7
- SKU: QHY16200A-CFW7
- Last price was: $4,839.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
QHY CCD QHY16200A-CFW7 w/ OAG, 16 Megapixel, APS-H Format, CCD Camera with Seven Filter Wheel, and Off Axis Guider
The CFW7 holds seven 2 inch/50mm filters. This is the upgraded QHY16200A with an integrated Color Filter Wheel that holds 7 different filters.
The QHY16200A/IC16200A uses a unique APS-H size CCD sensor, a product of close collaboration between QHYCCD and the sensor supplier. This sensor is specially designed and manufactured with amateur astronomers in mind who wanted a mono sensor larger than APS-C.
APS-H Format CCD Sensor
The effective image area is 27mm x 21.6mm. Compared to the QHY8L APS-C format of 23.4 x 15.8, the APS-H sensor is significantly larger with over 50% larger image area. The reason for desiring an APS-H size mono sensor is that there are no other existing mono sensors in size between the KAF-8300 (4/3inch) and the KAI-11002 (35mm format). This sensor has 16 Megapixels and the APS-H format is suitable for most telescopes, including SCT's that cannot fully illuminate a 35mm frame without some vignetting or distortion at the edges. It is also suitable for commonly available 2inch filters. The pixel size of this sensor is 6.0um x 6.0um, slightly bigger than the KAF-8300's 5.4um but, due to the larger size of the sensor, it has nearly twice as many pixels as the 8300. The QE is similar to or higher than 8300 and the 37ke- full well capacity is almost 50% greater than the 8300's 25.5ke-. Since the read noise is comparable to the 8300, the dynamic range can be calculated at about 1.5X greater than the 8300. This sensor also comes in a color version. By default, the QHY16200A/IC16200A uses the mono version. The color version is available by request. The current color sensor's filter matrix is Bayer RGB. We are discussing the possibility of an RGBW sensor as well.
"A" Series Camera - Fully Integrated
Both the QHY16200A and the IC16200A belong to the new QHYCCD "A" series camera family. "A" stands for "ALL-IN-ONE". The cameras include a built-in motor driven filter wheel and natively support the QHYOAG. The OAG can be installed on the camera solidly with six screws, consuming a minimum of back focus, precious for some optical systems. The filter wheel in the QHY16200A/IC16200A has 5 positions for 2-inch filters (QHYCCD is developing the 7-position 2 inch filter wheel upgrade). The camera is compatible with the medium size QHYOAG. In addition to the filter wheel and OAG, this "A" series camera offers an internal USB HUB(2.0) that provides two USB host port and a USB to dual RS232 converter. A guiding camera, mount and electric focuser can be connected directly to the camera instead of the computer to reduce cable clutter and the chance of signal loss due to the long cables. Only a single USB cable is needed to control all the peripherals.
|
QHY16200A Specification
|
|
|
CCD Sensor
|
APS-H 16.2 Megapixel CCD - Standard Grade
|
|
Effective Pixels
|
4540(H) x 3630(V),16.2 Megapixels
|
|
Pixel Size
|
6.0um x 6.0um
|
|
Effective Area
|
27.0mm(H) x 21.6mm(V), APS-H format
|
|
Readout Type
|
Full Frame CCD, Progressive Scan
|
|
FullWell
|
41ke- Typical
|
|
ADC
|
16-bit
|
|
Readout Noise
|
10e- Typical
|
|
System Gain
|
0.7e/ADU
|
|
Binning
|
1x1, 2x2, 4x4
|
|
Anti-Blomming
|
2000X saturation
|
|
Thermal Noise
|
0.04e-/pixel/sec @ -20C
|
|
Exposure Time
|
1ms - 10000 sec
|
|
TEC
|
2-stage
|
|
Cooling
|
-40 below Ambient, Typical
|
|
Shutter
|
Even-illumination butterfly mechanical shutter
|
|
Moisture Control
|
Air Connector for removable silicon gel tube
Heat board for optic window of airproof CCD chamber
|
|
Built-in Filter Wheel
|
5-position 2 inch/50mm, or 7-position 2 inch/50mm
|
|
OAG interface
|
Six M3 scew holes for QHYOAG
|
|
Telescope Interface
|
M54/0.75 inner screw
|
|
Power consumption
12VDC |
0% cooling 8W 50% cooling 16.5W 100% cooling 27W
|
|
Supported Filters
|
2-inch mounted filters, 5-positions: Maxium 6mm filter cell thickness (threads of the filter cell not included)
2-inch mounted filters, 7-positions: Maxium 9mm filter cell thickness (threads of the filter cell not included)
50mm unmounted filters, 5-positions: 1-5mm thickness
50mm unmounted filters, 7-positions: 1-8mm thickness
|
|
Weight
|
1550g (standard CFW5 version), no OAG included
2330g (CFW7 version), no OAG included
|
|
QHY16200A Electric Interface
|
|
|
USB Slave Port x1 USB host port x2 RS232 lemo 3pin port x2 2.1mm 12V DC port x2
|
|
