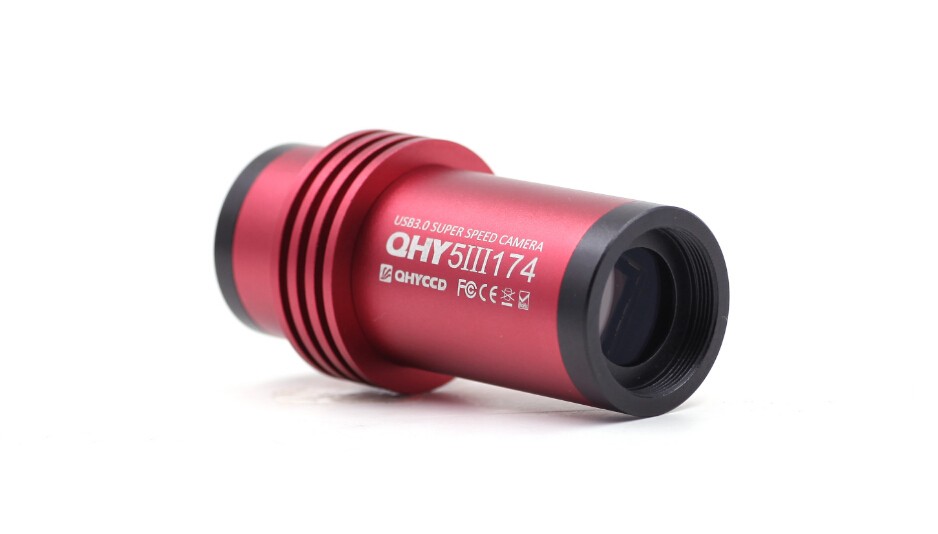

QHY CCD QHY5-III-174-C CMOS USB 3.0 Color Astronomical Video Camera
- Manufacturer: QHY
- UPC: 191149001116
- MPN: QHY5III174C
- SKU: QHY5III174C
- Last price was: $599.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
QHY5-III-174-C CMOS USB 3.0 Color Astronomical Video Camera
QHY5III174 uses the 2.3 Megapixel IMX174, 1/1.2-inch Exmor sensor with global shutter. Available in both monochrome and color. The large sensor size is a great choice for solar imaging, and the large pixel size and high QE (78%) makes it excellent for deep-sky imaging as well.
The QHY5III174 is the first in the new QHY5III series CMOS USB 3.0 cameras. The camera is designed to be an excellent planetary, lunar, solar and meteor capture video camera. With a 50mm, F/1.4 C-mount lens it will record 8th to 9th magnitude stars at 30 frames per second (33 ms exposure). This high sensitivity with HD resolution will push video astronomy to new heights.
Sony introduced a new global shutter (GS) CMOS imaging technology called PregiusTM that redefines the global shutter imaging category and provides the best of both worlds: fast frame rates and CCD-like imaging performance. The technology also offers reduced dark noise, which enables higher gains without compromising image quality, as well as higher quantum efficiency.
The global shutter eliminates pixelization when imaging the moon and planets and moon caused by atmospheric agitation and high frame rates.
The unique QHYCCD design retains the 1.25-inch eyepiece design of the QHY5-II series but adds features for better cooling. This design is more efficient in transfer of heat to the outer case enabling lower noise especially in high ambient temperatures. The 1.25 inch design also offers the shortest possible backfocus, making the camera ideal for off-axis guiding. In addition, the QHY5III174 uses a more robust LEMO style connector for the guide port. These connectors are known for being both rugged and reliable.
The QHY5III174 is available in both mono and color versions. The camera is well suited for solar imaging using short focal length telescopes that will capture a full solar disk within the FOV.
|
QHY5III174 Specification
|
|
|
Sensor
|
Sony IMX174 Exmor CMOS sensor (Mono/Color)
|
|
Imager Size
|
Typical 1/1.2-inch
|
|
Effective Pixels
|
1936 x 1216 2.4 Megapixels
|
|
Effective Area
|
11.34mm x 7.13mm
|
|
Pixel Size
|
5.86um x 5.86um
|
|
Readout Type
|
Progressive Scan
|
|
FullWell
|
>32 Ke-
|
|
Peak QE
|
78% (Monochrome)
|
|
Readout Noise
|
5.3e-@Gain0 2.8e-@Gain60 1.6e-@Gain100
|
|
System Gain
|
0.46e-/ADU@Gain0
|
|
Anti-amplight Control
|
Yes (Reduces amp glow significantly)
|
|
Shutter
|
Global Shutter
|
|
Max Frame Rate (8BIT)
|
138FPS @ 1936x1216 260FPS@960x600 490FPS@480x300
|
|
ADC Sample Depth
|
10/12-bit, Output 8-bit/12-bit
|
|
Exposure Time
|
5us - 900sec
|
|
Pixel Binning
|
1x1, 2x2
|
|
MicroLens
|
Yes,on-chip microlens array
|
|
Weight
|
89g (Mono) / 85g (Color)
|
|
Guide Port
|
Yes, 5-pin Lemo aviation socket
|
|
Back Focal
|
Approx. 11mm
|
|
Camera Size
|
1.25-inch Eyepiece Size (D=31.6mm)
|
|
Optic Window
|
AR+AR (Mono camera)
AR+IR cut 680nm (Color camera) |
|
Support Software
|
ASCOM, SharpCAP
|
|
Items included in standard package
|
QHY5III174 camera. Confocal ring. 1.5meter USB3.0 cable. 1.5meter 5-pin lemo to RJ11 guide cable. (does not include the 50mm F/1.4 lens)
|
IMX174 Exmor CMOS Sensor
High Quality 5pin Lemo Guide Socket
Relativity QE Curve of the Color IMX174 sensor
the QHY5-III series cameras are USB3.0 super-speed cameras and guiders. They can be used in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. All QHY5-III series cameras come in a very small but powerful package!
The QHY5-III series employs an advanced thermal design. The heat generated by the CMOS sensor is transferred externally to the telescope's eyepiece tube. Additional heat is transferred to a heat sink on the location ring and cooled by outside air.
Software support includes: EZPlanetary, SharpCAP, FireCapture, Native WDM, BroadCast WDM and ASCOM.
