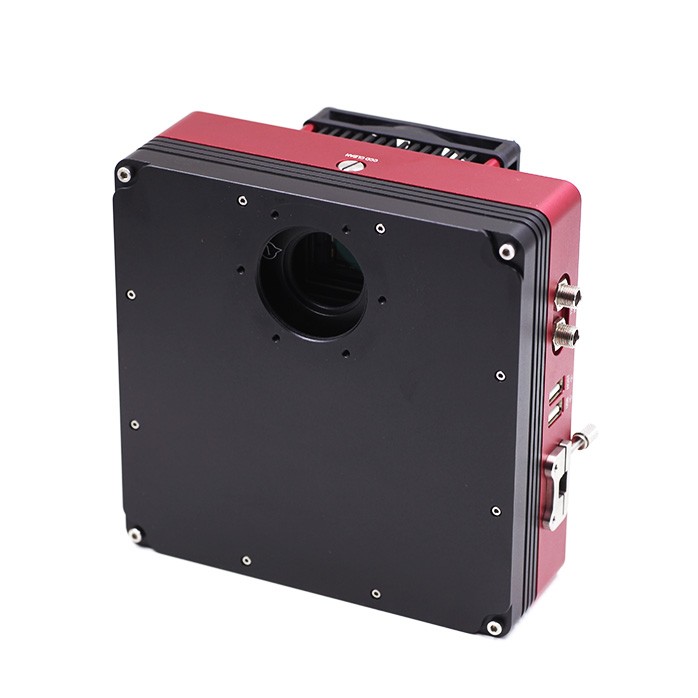

QHY CCD QHY90A w/ OAG, 8.6 Megapixel 4/3 inch astronomy CCD camera with Off Axis Guider
- Manufacturer: QHY
- UPC: 191149001017
- SKU: QHY90A
- Last price was: $2,969.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
QHY CCD QHY90A w/ OAG, 8.6 Megapixel 4/3 inch astronomy CCD camera with Off Axis Guider
The QHY90A/IC90A uses the 4/3inch KAF-8300 CCD sensor so popular in many astronomical CCD cameras. This camera has a built-in 7-position filter wheel for 36mm unmounted filters for unvignetted fields even at f/2, and a butterfly style even-illumination mechanical shutter for photometric accuracy across the field of view.
KAF-8300 - Popular Sensor
The KAF-8300 8.3 Megapixel 4/3 inch mono sensor is used in many astronomy camera models.
|
QHY90A Specification
|
|
|
CCD Sensor
|
KAF-8300 Mono, Standard Grade
|
|
Effective Pixels
|
3358(H) x 2536(V) 8.6mega pixels
|
|
Pixel Size
|
5.4um x 5.4um
|
|
Effective Area
|
17.96mm(H) x 13.52mm(V), Typical 4/3inch
|
|
Readout Type
|
Full Frame CCD, Progressive Scan
|
|
FullWell
|
>25.5ke
|
|
Anti-Blooming gate
|
Yes, 100X
|
|
ADC
|
16-bit
|
|
Readout Noise
|
9 e- Typical
|
|
System Gain
|
0.55 to 0.6 e-/ADU
|
|
Binning
|
1x1,2x2,4x4
|
|
Exposure Time
|
1ms-10000sec
|
|
TEC
|
2-stage
|
|
Cooling
|
-45C Below Ambient, Typical
|
|
Shutter
|
Even-illumination butterfly mechanical shutter
|
|
Moisture Control
|
Air Connector for removable silicon gel tube
Heat board for optical window of airproof CCD chamber
|
|
Built-in Filter Wheel
|
7-position, for 36mm unmounted filters
|
|
OAG interface
|
Six M3 scew holes for QHYOAG
|
|
Telescope Interface
|
M42/0.75 inner screw
|
|
Power consumption
|
0% cooling 8W (12V, 0.7A), 50% cooling 16.5W (12V, 1.4A), 100% cooling 27W (12V, 2.3A)
|
|
Weight
|
1550g
|
|
QHY90A Electronic Interface
|
|
|
USB Slave Port x1 USB host port x2 RS232 lemo 3pin port x2 2.1mm 12V DC port x2
|
|
|
|
|
"A" Series Camera - Fully Integrated
Both the QHY90A and IC90A belong to QHYCCD new "A" series camera family. "A" stands for "ALL-IN-ONE". The cameras include a built-in motor driven filter wheel and they natively support the QHYOAG. The small size OAG can be installed on the camera solidly with six screws using a minimum of back focus, precious for some optical systems. The filter wheel in the QHY90A/IC90A has a 7-position carousel for 36mm unmounted filters. In addition to the filter wheel and OAG, these "A" series cameras offer an internal USB HUB(2.0) that provides two USB host ports and a USB to dual RS232 coverter. A guiding camera, mount and electric focuser can be connected directly to this camera instead of the computer to reduce cable clutter and the chance of signal loss due to the long cables. Only one USB cable is needed to control all the peripherals.
.
Butterfly Shutter - long life and uniform illumination
This camera uses a mechanical shutter that has a butterfly shape. The shutter is directly driven by a motor with no other moving parts. The working life is almost unlimited. The shutter has two sides that block light and open spaces in between. The fan shape of the blades create even-illumination when opening, and even-darkness when closing for dark frames. This feature is of great benefit when taking flat frames or making photometric measurements.
Single 12V power socket
This camera uses a single 12V IN power port. The power socket is threaded for a solid connection that will not accidentally disconnect. There is another socket connected in parallel with the input that can be used to supply 12V OUT to other devices.
Sample FIT Files
NGC2244 - A single 10 min. exposure at -20C.
|
QHY90A Specification
|
|
|
CCD Sensor
|
KAF-8300 Mono, Standard Grade
|
|
Effective Pixels
|
3358(H) x 2536(V) 8.6mega pixels
|
|
Pixel Size
|
5.4um x 5.4um
|
|
Effective Area
|
17.96mm(H) x 13.52mm(V), Typical 4/3inch
|
|
Readout Type
|
Full Frame CCD, Progressive Scan
|
|
FullWell
|
>25.5ke
|
|
Anti-Blooming gate
|
Yes, 100X
|
|
ADC
|
16-bit
|
|
Readout Noise
|
9 e- Typical
|
|
System Gain
|
0.55 to 0.6 e-/ADU
|
|
Binning
|
1x1,2x2,4x4
|
|
Exposure Time
|
1ms-10000sec
|
|
TEC
|
2-stage
|
|
Cooling
|
-45C Below Ambient, Typical
|
|
Shutter
|
Even-illumination butterfly mechanical shutter
|
|
Moisture Control
|
Air Connector for removable silicon gel tube
Heat board for optical window of airproof CCD chamber
|
|
Built-in Filter Wheel
|
7-position, for 36mm unmounted filters
|
|
OAG interface
|
Six M3 scew holes for QHYOAG
|
|
Telescope Interface
|
M42/0.75 inner screw
|
|
Power consumption
|
0% cooling 8W (12V, 0.7A), 50% cooling 16.5W (12V, 1.4A), 100% cooling 27W (12V, 2.3A)
|
|
Weight
|
1550g
|
|
QHY90A Electronic Interface
|
|
|
USB Slave Port x1 USB host port x2 RS232 lemo 3pin port x2 2.1mm 12V DC port x2
|
|
|
QHY OAG Specification
|
|
|
Prism
|
8mm x 8mm Multi-Coated Prism
|
|
Through Hole Size
|
8mm diameter
|
|
Focuser
|
1.25-inch Multi-thread Focuser with 6mm range
|
|
Focuser Locker
|
Yes
|
|
Guide Camera Position Adjust
|
Yes
|
|
Directly Install Method
|
Six M3 screw to QHYCFW2 or QHY "A" series camera
|
|
Telescope Interface
|
M42/M54/M60 0.75 adapter ring (3mm thick)
|
|
Use for other camera
|
Yes, with third party M42/M54/M60 adapter ring on camera side
|
|
Thickness
|
10mm (without telescope adapter ring)
13mm (with telescope adapter ring)
|
|
The difference of Small Medium and Large Size
|
|||
|
|
QHYOAG-S
|
QHYOAG-M
|
QHYOAG-L
|
|
Telescope Adapter Ring
|
M42/0.75
|
M54/0.75
|
M60/0.75
|
|
The circle diameter of six M3 screw location
|
54mm
|
62mm
|
68mm
|
|
Compatiable Device
|
QHY(IC)90A
QHY(IC)695A
QHYCFW2-S
|
QHY(IC)16200A
QHYCFW2-M
|
QHY(IC)16803
QHYCFW2-L
|
|
Suitable CCD SIZE
|
2/3inch
1inch
4/3
|
APS-C
APS-H
36*24
|
36x24mm
37x37mm(16803)
48x36mm(50100,requires special adapter)
|
|
Weight
|
127g
|
145g
|
149g
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
