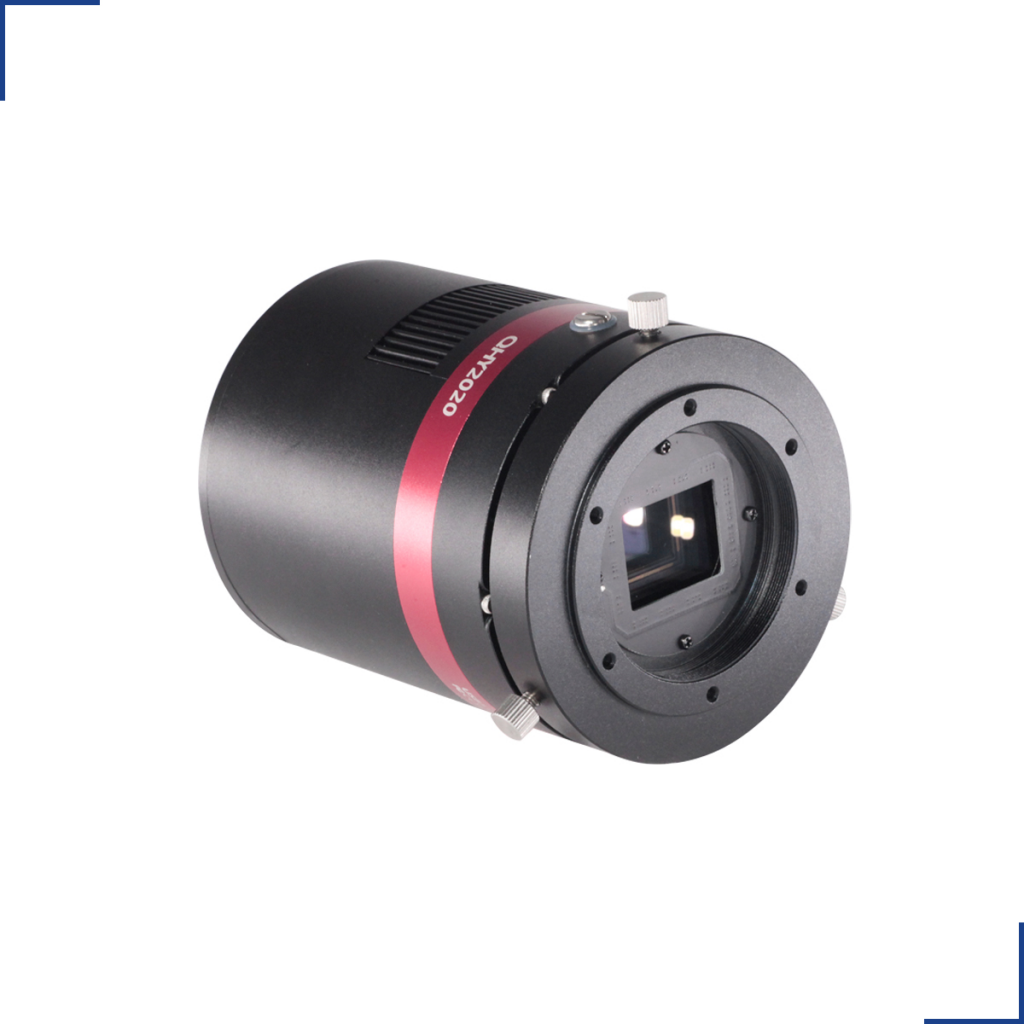

QHY2020 BSI CLASS 2 CMOS IMAGER



QHY2020 is a cooled scientific CMOS camera with GSENSE2020 back illuminated CMOS sensor: 13.3mm x 13.3mm, 2K*2K resolution, 4mega pixels. This square scientific CMOS has ultra high QE and wide spectral response from 200nm to 1100nm. It has 94% peak QE at 550nm-600nm, 60% QE at 240nm. It also has very good QE in the NIR range, 60% at 800nm, 38% at 900nm. QHY2020EUVX is a special EUV/Soft X-ray enhanced version with >90% QE in 1.2nm to 15nm extreme UV range. The high, wide response from NIR to UV makes the QHY2020 a perfect camera for spectrum analysis and spectrum imaging systems. The QHY2020 is also an ideal scientific CMOS camera for Fluorescence imaging.





QHY2020 supports 21 5FPS,25,35FPS frame rate and HDR two channel output. It has the capability to output dual channels as 4096 x 2048 with one channel at high gain and one channel at low gain.  You can also select either the high gain or low gain output.



With read noise as low as 1.6e-, this camera can capture photons from very dim objects. At 3.5 electrons it can achieve SNR=2, which means 4 photons. This detection limit is close to some EMCCD cameras.



The standard version of the QHY2020 is USB3.0.  It can produce a maximum frame rate of 33 frames per second for single channel 12bit images, or 21.5 frames per second for dual channel 12-bit images (HDR mode).  The camera can also transfer selected regions of interest for extremely fast rates, e.g., 450 FPS at 128lines, 1460 FPS at 32 lines.  This specially addressed line readout mode can also be customized.



Model QHY2020 / QHY2020EUVX
CMOS Sensor Gpixel Gense2020 BSI / Gesen2020 BSI-PS
Pixel Size 6.5um x 6.5um
Sensor Surface Glass Clear Glass  /  Non-Glass
Effective Pixel Area 2048 x 2048
Effective Pixels 4 Megapixels
Effective Image Area 13.3mm x 13.3mm
Fullwell 56ke-
AD Sample Depth Dual 12-bit A/D (High Gain Channel and Low Gain Channel) *
QE QHY2020
94% peak QE.  60% @ 800nm     38% @ 900nm    60% @ 240nm
QHY2020EUVX
90% to 99% at 1.2nm to 15nm     35% @ 200nm    68% @ 600-700nm    50% @800nm    40%@900nm
Full Frame Rate and ROI Frame Rate Full Frame Rate



(Clock 3, STD mode,  12bit, DDR ON)  2048*2048 32.5FPS
(Clock 2, STD mode,  12bit, DDR ON)  2048*2048 25FPS
(Clock 1, STD mode,  12bit, DDR ON)  2048*2048 21.5FPS
(Clock 0, STD mode,  12bit, DDR ON)  2048*2048 15 FPS

(Clock 1, HDR mode,  2*12bit, DDR ON)  4096*2048  21.5FPS
(Clock0 , HDR mode,  2*12bit, DDR ON) 4096*2048 15FPS

Hardware ROI Frame Rate *

(Clock 3, STD mode,  12bit, DDR ON)
2048 Lines   32.5FPS   (eg. 2048*2048)
1024 Lines   63FPS      (eg. 2048*1024, 1024*1024 etc)
512 Lines     124FPS    (eg. 2048*512, 1024*512 etc)
256 Lines     243FPS
128 Lines     460FPS
64 Lines       840FPS
32 Lines       1460FPS

(Clock 1, HDR mode,  2*12bit, DDR ON)

2048 Lines   21.5FPS   (eg. 2048*2*2048)
1024 Lines   63FPS      (eg. 2048*2*1024
512 Lines     83FPS      (eg. 2048*2*512)
256 Lines     156FPS
128 Lines     308FPS
64 Lines       560FPS
32 Lines       980FPS

*note: Hardware ROI support need upgrade the MAX10 FPGA codes. (>=V2020.3.18) and Need the System Driver >=2020.3.14 and SDK>=2020.3.14

Readout Noise 1.6e-
Dark Current TBD
Exposure Time Range 20us – 300sec

Shutter Type Electric Rolling Shutter
Computer Interface USB3.0
Built-in Image Buffer 128MByte (512Mb) DDR2

Cooling System Dual Stage TE Cooler(-40C below ambient)
Anti-Dew Heater Yes
Telescope Interface M54/0.75 female thread on the fast installer/center adjust ring
Optic Window Type AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 16mm(±0.5)
Weigth 750g
