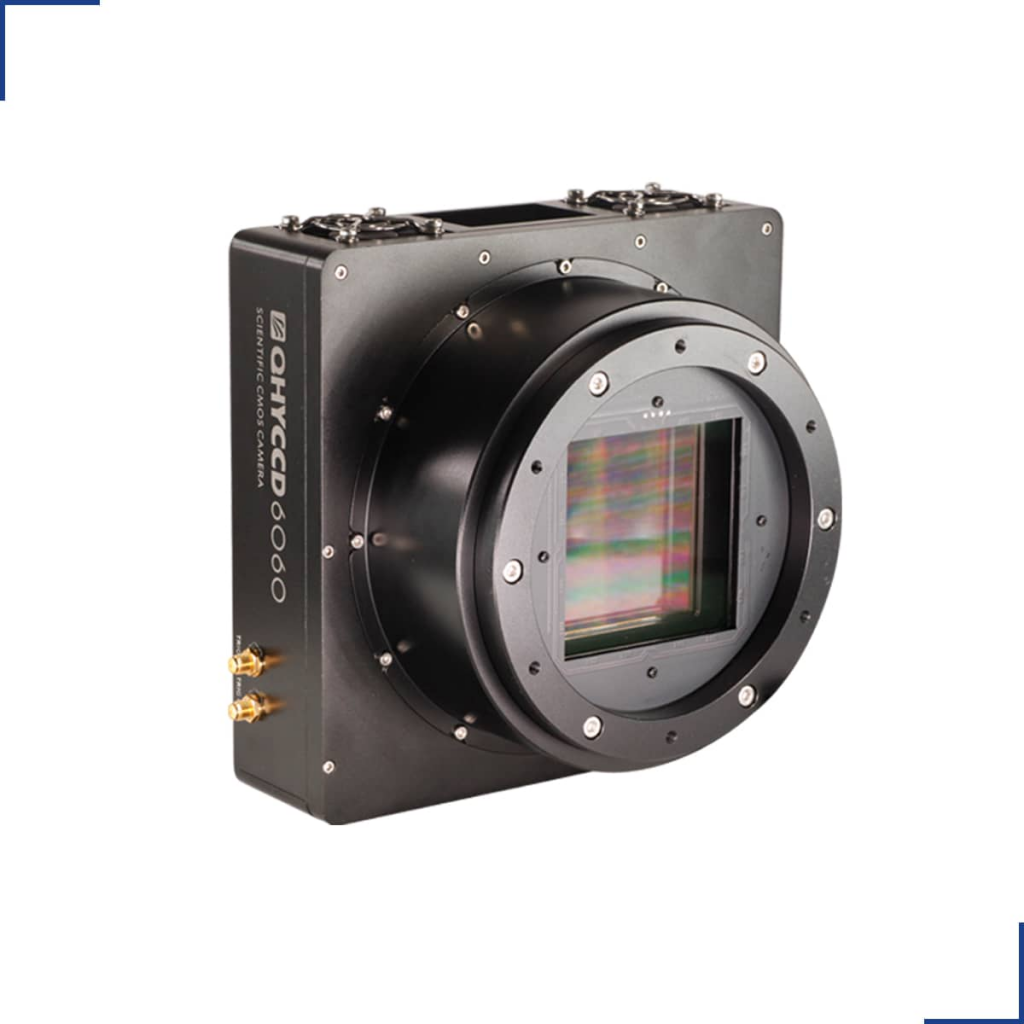

QHY6060 FSI Class 1 CMOS IMAGER
- Manufacturer: QHY
- MPN: 6060 FSI Class 1
- SKU: QHY6060 FSI Class 1
- Last price was: $46,000.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
QHY6060 is a big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal) Gpixel Gsense6060 sensor, 10um pixel size, 14bit ADC, 6K*6K resolution. It has both a back-illuminated version and a front-illuminated version. The FSI version has 72% peak QE and the BSI version has 95% peak QE.
QHY6060 has a 2-stage TEC cooler and it is air-cooling / water cooling compatible. QHY6060 has USB3.0 high-speed interface.
The BSI QHY6060 also has a soft X-ray response. In order to use it in a full vacuum environment. The camera needs to be put into a vacuum environment. QHYCCD can offer a special customized design of the full vacuum version. Please contact QHYCCD if you need this version.
| Model | QHY6060FSI (Front illuminated version) QHY6060BSI (Back illuminated version) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CMOS Sensor | Gpixel GSENSE6060 FSI / BSI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pixel Size | 10um x 10um | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sensor Surface Glass | Clear Glass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixel Area | 6134*6134 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Total Pixel | 6200*6134 Includes the optic black area on left side and right side |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels | 37.6 Megapixels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Image Area | 61.34mm x 61.34mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fullwell | QHY6060FSI 70ke QHY6060BSI TBD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Peak QE | 72% (FSI version) 95%(BSI version) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A/D | 14-bit A/D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sensor Size | 6×6 Medium Format | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Full Frame Rate and ROI Frame Rate | QHY6060 2.5FPS(8bit speed 0) 3.5FPS(8bit speed1) 4FPS(8bit speed 2) 5FPS(8bit speed 3) 2.5FPS(16bit speed 1,2,3)QHY6060PRO TBD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Readout Noise | 4.7e- (at maxium analog gain in high gain channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dark Current | FSI 0.2e/pixel/sec @ -15C BSI TBD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exposure Time Range | 20us-300sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply Input / Power Consumption | 12V DC input | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shutter Type | Electric Rolling Shutter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Computer Interface | USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in Image Buffer | 128MByte DDR2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Air / Water Cooling | Support Both Air Cooling and Water Cooling | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Dual Stage TEC cooler Below ambient temperature -25CDual Stage TEC cooler with water CoolingBelow ambient temperature -35C to -37C (water temperature 26C)Below ambient temperature -45C to -47C (water temperature 10C) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anti-Dew Heater | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Telescope Interface | See Mechanical Drawing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection Coating | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Back Focal Length | See Mechanical Drawing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weigth | TBD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reference Price | QHY6060 BSI Grade 0 Contact QHYCCD QHY6060 BSI Grade 1 USD125000 QHY6060 BSI Grade 2 USD89000 QHY6060 BSI Grade 3 USD33230QHY6060 FSI Grade 0 USD88000 QHY6060 FSI Grade 1 USD46000 QHY6060 FSI Grade 2 USD40000 QHY6060 FSI Engineer Grade Contact QHYCCDQHY6060PRO BSI Grade 0 Contact QHYCCD QHY6060 is a big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal) Gpixel Gsense6060 sensor, 10um pixel size, 14bit ADC, 6K*6K resolution. It has both a back-illuminated version and a front-illuminated version. The FSI version has 72% peak QE and the BSI version has 95% peak QE. QHY6060 has a 2-stage TEC cooler and it is air-cooling / water cooling compatible. QHY6060 has USB3.0 high-speed interface. The BSI QHY6060 also has a soft X-ray response. In order to use it in a full vacuum environment. The camera needs to be put into a vacuum environment. QHYCCD can offer a special customized design of the full vacuum version. Please contact QHYCCD if you need this version.
|
