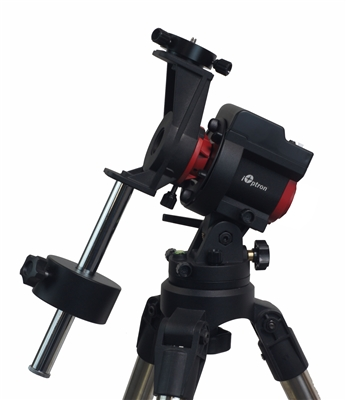

SkyGuider Pro Camera Mount w/ iPolar



The SkyGuiderTM Pro -- iOptron’s next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.

This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place. The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.

The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuideTM Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.



Features
  • All metal mechanical structure
  • Attaches to a camera tripod with 3/8” or 1/4” threads
  • Payload 11 lbs (5kg) (balanced, with DEC mounting bracket, exclude CW)
  • Silent tracking for smooth camera motion, perfect for long-term exposures
  • Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
  • Includes iOptron iPolarTM electronic polar scope
  • 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
  • Operation in both northern and southern hemisphere
  • Quick slew (144X) for camera framing adjustment
  • Built-in rechargeable battery for up to 20 hours of operation (20°C)
  • Built-in ST-4 autoguiding port
  • HBX port for external hand controller
  • Micro USB port for power, charging and firmware upgrade
  • Built-in shutter triggering port
  • Padded carry bag included
  • DEC mounting bracket
  • Counterweight and CW shaft
  • Vixen dovetail saddle for scope mounting


PACKAGE CONTENTS
  • SkyGuiderTM Pro camera mount
  • Alt-azi base (installed)
  • iPolarTM electronic polar scope (installed)
  • Micro USB charging cable
  • Padded carry bag
  • DEC mounting bracket w/ camera mounting disk
  • 1.35kg counterweight
  • CW shaft
  • One Year Limited Warranty (90 day on battery)
