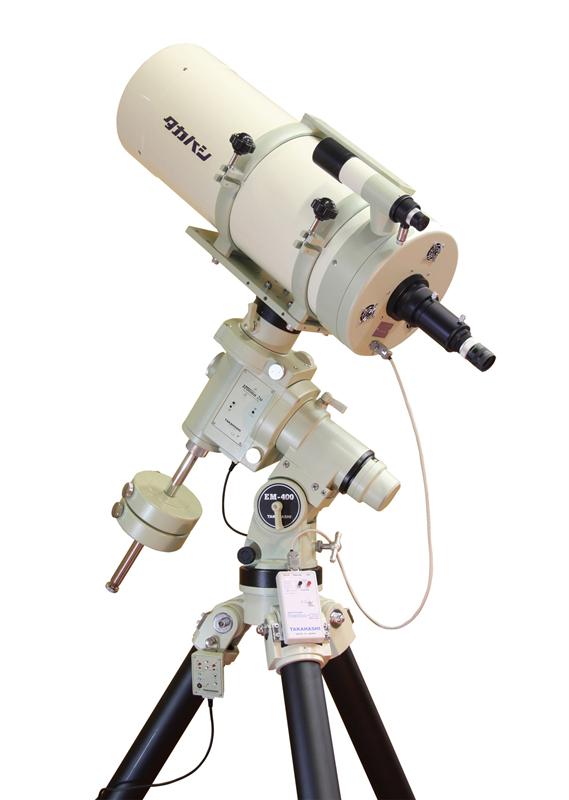

Takahashi Mewlon-250CRS Corrected Mewlon OTA

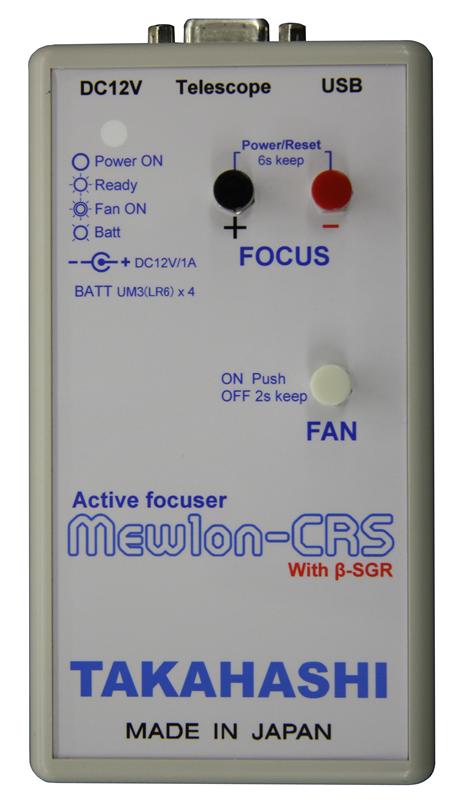

250mm f/10 corrected telescope with built-in corrector, Active-Focus ASCOM compliant computer focusing, computer controlled cooling system.


This telescope is one of Takahashi’s originals and is a unique reflector designs which combines an elliptical primary mirror and a spherical secondary plus a 3-element corrector.


The M-250CRS can be used at prime focus [with a corrected field], with the dedicated reducer or extender available optionally.


Specifications


Optical system  …………  Corrected Dall-Kirkham
Effective aperture  ……  250mm
Effective focal length    2500mm
Effective focal ratio     10.0
Secondary mirror          72mmø
Resolving power           0.46”
Limiting magnitude        13.8
Light gathering power     1275X
Image circle              40mmø
Backfocus             180.8mm
Metal Back                115.5mm


With Reducer-CR 0.73X


Effective focal length    1825mm
Effective focal ratio     7.3
Image circle              35mmø
Metal back                 72.8mm


With Extender-CR 1.5X


Effective focal length    3780mm
Effective focal ratio     15.1
Image circle              44mmø
Metal back                 117.5mm


Diameter of main tube      280mmø
Total length of main tube  945mm [37.2”]
Total weight of main tube  12kg [26.4 lbs] w/7x50 finder
Finder                     7x50 w/apparent field of 4.2°



Standard Accessories


Hand control, control cable, 50.8mm (2”) extension tube, Allen wrenches (1.5mm, 2mm, 2.5mm & 5mm), inspection certificate & instruction manual.
