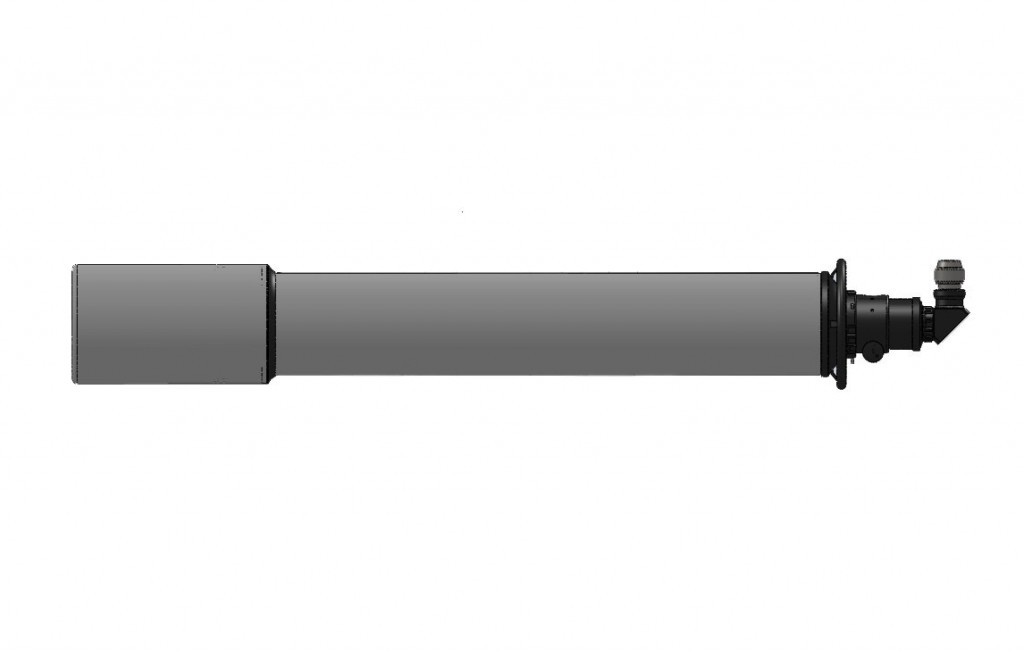

Telescope Engineering TEC APO 200FL f/7 Refractor-Discontinued
- Manufacturer: Telescope Engineering Company - TEC
- MPN: TEC-APO200FL
- SKU: TEC-APO200FL
- Last price was: $29,600.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
The APO 200 has a number of features that in a given combination are rarely found in one scope:
- Precision apochromatic objective with modern coating that makes lenses almost invisible
- Retractable baffle Light weight tube assembly
- FeatherTouch 360° rotatable focuser with coarse and fine focusing
- ollet type eyepice holder.
Line of accessories, including :
- Precision tube rings with adjustable latches
- Dovetail plate 12” long (same width and fit as Losmandy plates)
- Finder bracket with new principle of finder adjustment
Includes optical tube assembly, front cover, plug and tube rings.
| Clear Aperture | 8" / 200mm |
| Focal Length | 1600mm |
| Focal Ratio | 8 |
| Image Scale | 2.1 arc min/mm |
| Resolution (theoretical) | 0.46s arc sec |
| Focuser | Feather Touch 3545 |
| Eyepiece holder | 2" Collet type |
| Focusing range | 4.5" / 114 mm |
| One turn focus travel | Coarse 21.5mm / Fine 2.3mm |
| Back focus distance | 7" / 180mm |
| Focuser load capacity | 10 lb |
| Tube assembly diameter | 9.2" / 234 mm |
| Baffle diameter | 10" / 254mm |
| TA length (shortest | 58" / 1473mm |
| Balance point position | ~600mm from flange |
| OTA weight | 45lb / 20 kg |
| Lens coatings | Broad band anti-reflection coating (BBAR) |
