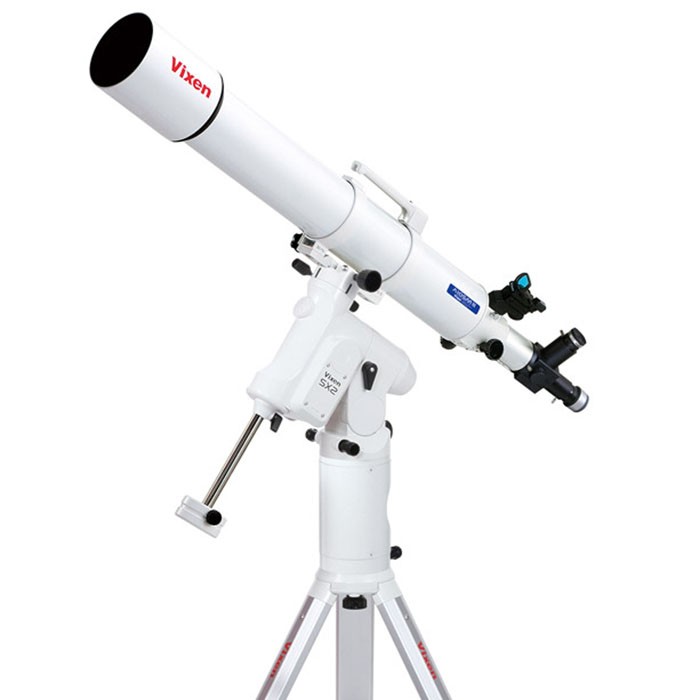

Vixen Telescope SX2-A105MII



A bit more aperture to view deeper into the night sky.

Vixen achromatic refractors feature stable and high contrast images. This is an excellent package for the new astronomer.

  • A105MII optical tube + SX2 mount + SXG-HAL130 tripod

    The package includes a 105mm aperture achromatic refractor, a robust SX2 mount with simple operation and a sturdy SXG-HAL 130 aluminum tripod. It comes with eyepieces as standard accessory. All you need would be a power supply battery or AC adapter 12V-3A sold separately.

  • A105MII optical tube assembly.

    The A105MII optical tube with 105mm effective aperture is a great starter telescope for beginners. It offers light gathering power which is about 225 times of unaided eye. It is applicable to observation at high magnification and viewing faintly glowing celestial objects. The achromatic lens delivers clear image of less chromatic aberration. The lens is multi-coated with three layers of anti-reflection coatings for reducing loss of light and increasing contrast of image. The A105MII refractor gets the stable images in a short time and you will be able to start observing quickly.

  • SX2 equatorial mount.

    An entry model of the SX series of the equatorial mounts. With the same precision pulse motors and micro-step motions control as the upper SXD2, the SX2 is an excellent performer with smooth response. The maximum photographic loading weight is 12 kg. The SX2 mount comes as standard with the STAR BOOK ONE handheld controller, which features versatile tracking rates, different slewing speed, backlash compensation, autoguider port, PEC and more. The revolutionally advanced STAR BOOK TEN Go-to navigation controller sold separately is compatible with the SX2 mount.



Optical Tube

  • Objective lens, effective aperture
    105mm achromatic, munticoated
  • Focal length (focal ratio)
    1000mm (F9.5)
  • Resolving power / Limiting magnitude
    1.1 arc seconds / 11.9
  • Light gathering power
    225X unaided eye
  • Dimensions / Weight
    115mm dia. x 1010mm long / 4.8 kg (Net 3.8 kg)
  • Finder scope
    XY red dot finder II (zero power)

Focuser

  • Focusing mechanism
    Rack-and-pinion (with focus lock)
  • Adapter threads / Visual back
    60mm and 42mm for T-ring / 50.8mm and 31.7mm push fit (with use of the flip mirror)
  • Accessories
    Tube rings, Dovetail tube plate, Metal carry handle
  • Eyepieces
    NPL20mm (50X, 60' field of view), NPL6mm (167X, 18' field of view)

Tripod

  • Leg type, material
    Large hex-shaped adjustable 2-section aluminum legs
  • Size / Weight
    Adjustable from 807mm to 1299mm in length, from 730mm to 1156mm in height, setup radius from 460mm to 706mm / 5.5 kg

Others

  • Accessories
    SXG half pillar, Parts case, Counterweight 1.9 kg x 1
  • Photography
    Usable with Prime focus, Eypiece projection and Afocal imaging
  • Solar observation
    Available with sun projection screen set B
  • Total weight
    21.1 kg (without eyepieces)
